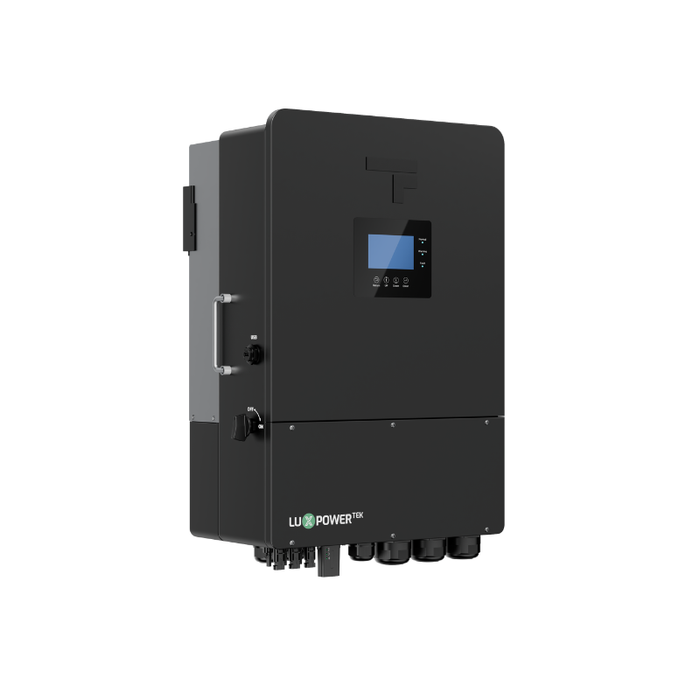

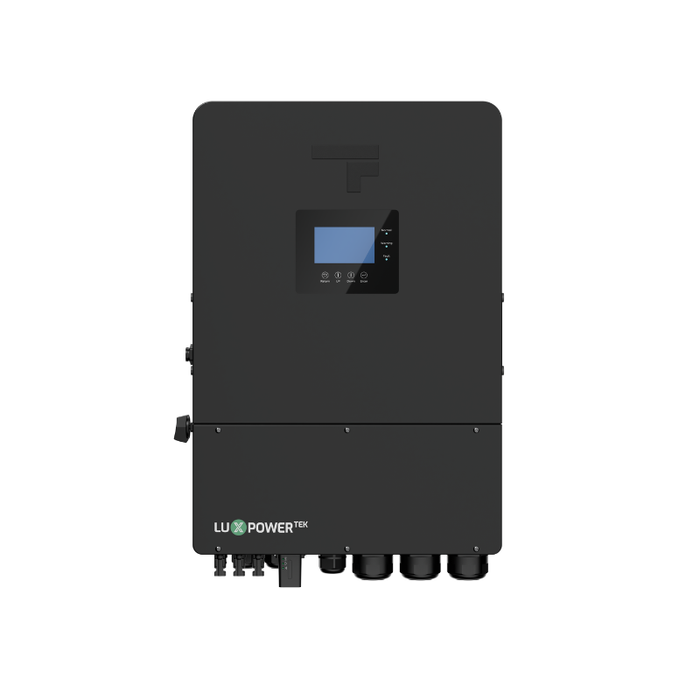

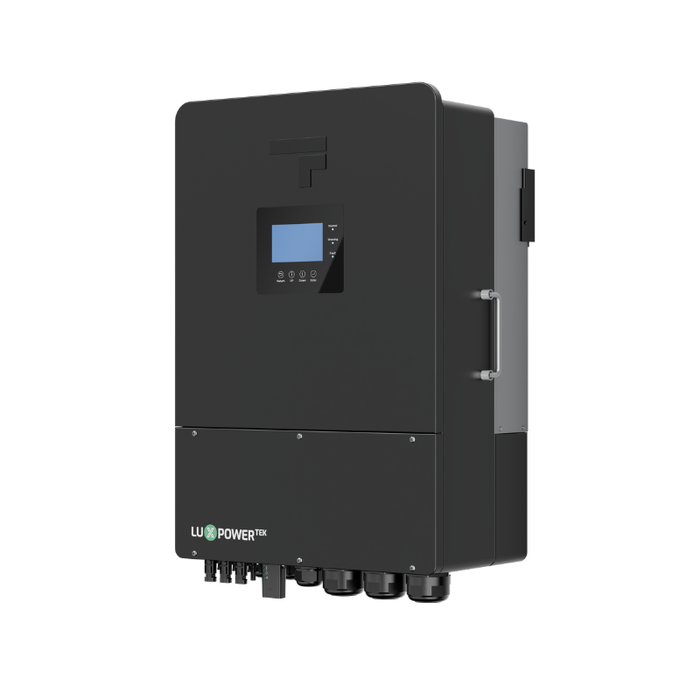

The Fogstar TriP2-LB-3P 20K is a three-phase hybrid inverter built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Built for demanding residential, commercial and light industrial installations, it combines powerful solar generation, advanced battery integration and intelligent energy management within a compact, installer-friendly platform.
With triple MPPTs, generator support, independent export control on each phase and scalable parallel operation, it provides a flexible solution for modern energy storage and backup systems.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Minimum setup: Fogstar Energy 48V 16.1kWh ECO or 16.1kWh IP-Rated (PACE)
Recommended: Fogstar Energy 48V 32kWh Battery
Full headroom: Fogstar Energy 48V 48.3kWh Modular Battery
Key Features
• 20kW three-phase hybrid output
• Triple MPPT with up to 30kW PV input
• Up to 250A battery charge/discharge
• Supports three-phase unbalanced loads
• Independent export control per phase
• Generator and Smart Port functionality
• Parallel capability up to 10 units
Performance & Reliability
• 20kW continuous three-phase output
• Up to 97.7% maximum efficiency
• Intelligent backup power functionality
• Independent export control on each phase
• IP66-rated enclosure for indoor and outdoor installations
Monitoring & Installation
• Remote monitoring via the LuxpowerTek app
• RS485, Wi-Fi, and CAN communication
• Installer-friendly wall-mounted design
Dimensions: 480 × 703 × 258mm
Weight: 53kg
Ideal For
• Three-phase residential energy storage systems
• Commercial and light industrial applications
• Large solar and battery installations
• Backup and resilience systems
• On-grid and off-grid energy projects
