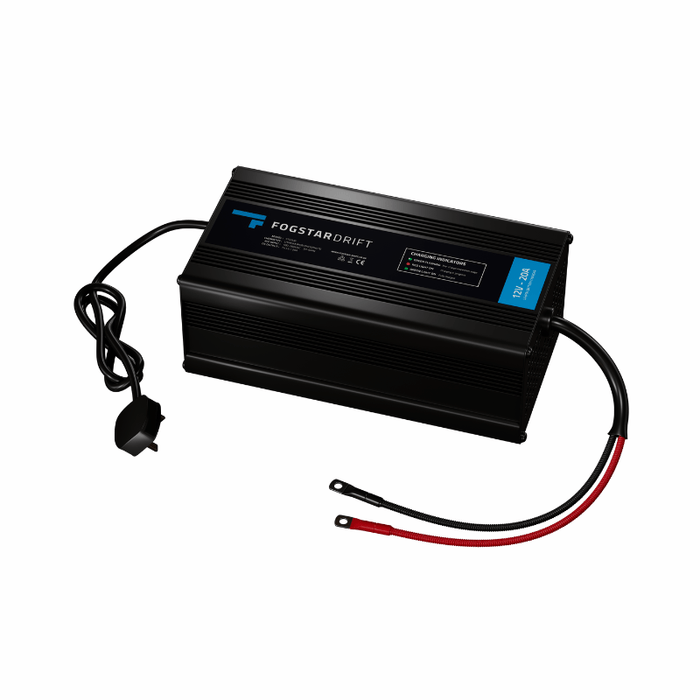

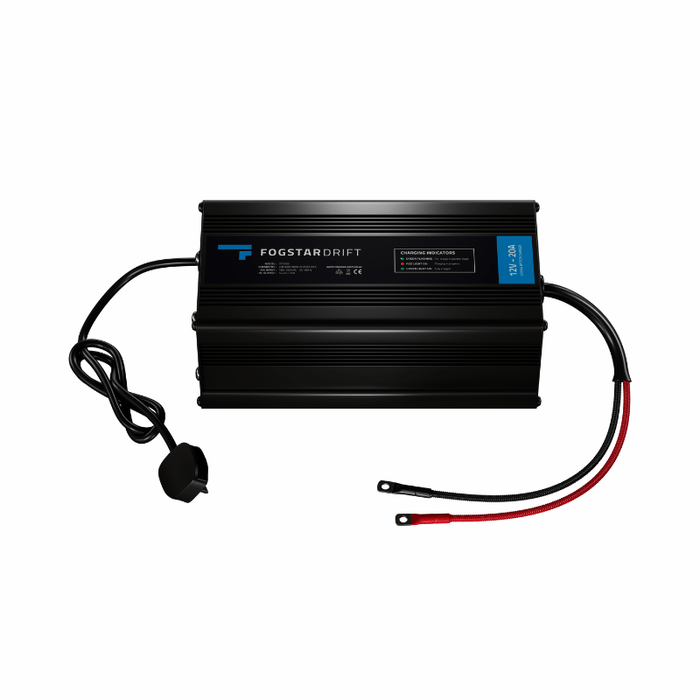

LiFePO4 Charger (Fogstar Drift) - 12V 20A

£49.99

This upgraded product is now quieter and more efficient! We've redesigned our chargers with  larger heatsinks and quieter fans for optimal performance. All chargers now have mounting holes.

These chargers have been designed by Fogstar specifically to work with LiFePO4 batteries, in particular our 105Ah and 230Ah 12V Drift Leisure Batteries.

Our user-friendly 12V 20A LiFePO4 charger is packed with extensive protective features, and are of a high seismic grade, ideal for use during off-grid adventures.

PRODUCT SPECIFICATIONS

Working Temperature     -30°c ~ +40°c
Storage Temperature       -40°c ~ +70°c
Relative Humidity            5% ~ 95%
Heat Dissipation Mode    Fan Cooling
Input Voltage                   180-260 VAC
Input Frequency               50Hz / 60 Hz
Chemistry                          LiFePO4
DC Output                         14.2V / 20A

HOW TO CONNECT YOUR CHARGER

  1. Remove your charger from the packaging
  2. Retain the packaging
  3. Ensure the charger air vents are not blocked before connecting
  4. Connect the black (negative -) cable to the black (negative -) terminal on the battery
  5. Connect the red (positive +) cable to the red (positive +) terminal on the battery
  6. Ensure terminal rings are tightened to a torque value of around 10 N.m
  7. Plug your battery charger into the mains and switch ON
  8. Your battery indicator light should be flashing green (pre-charge inspection stage).

HEALTH AND SAFETY

  • Do not disassemble the charger
  • Do not remove the charger cover
  • Do not block the charger air vent
  • Keep away from heat source
  • Keep away from water
  • Do not crush, incinerate or modify
  • Only use within manufacturers specifications.
