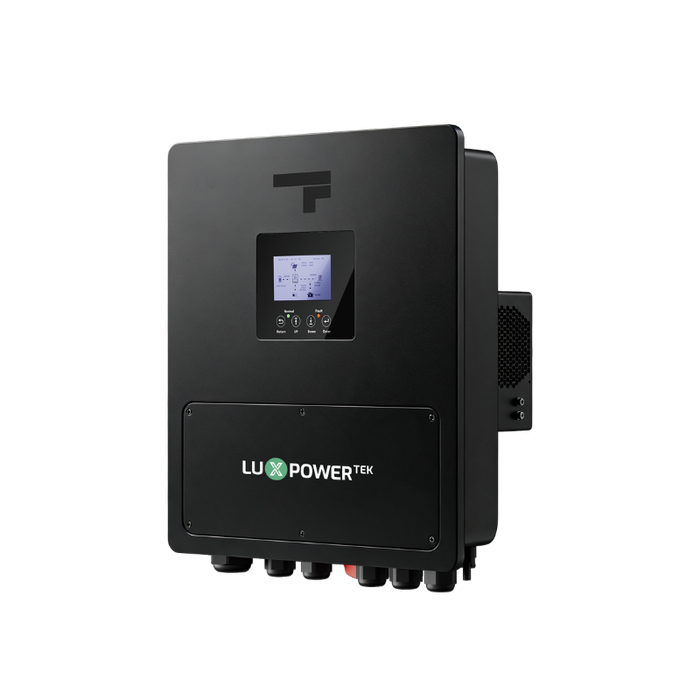

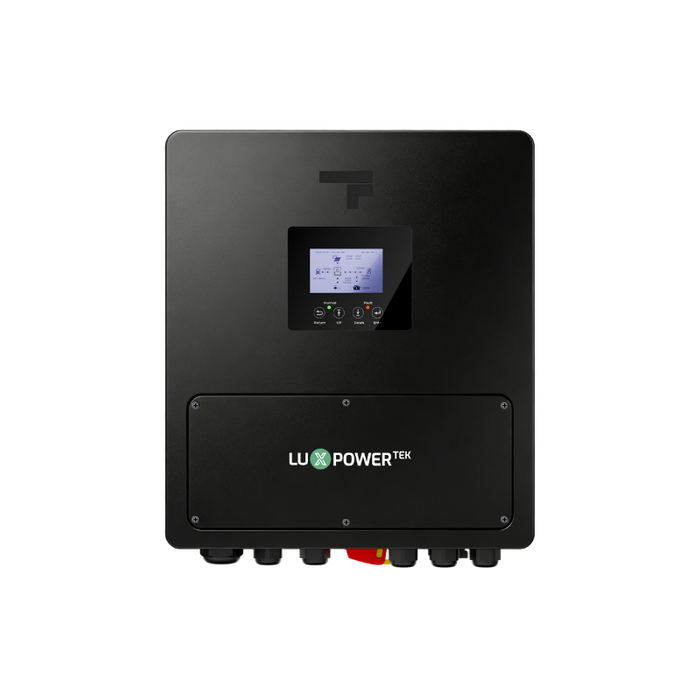

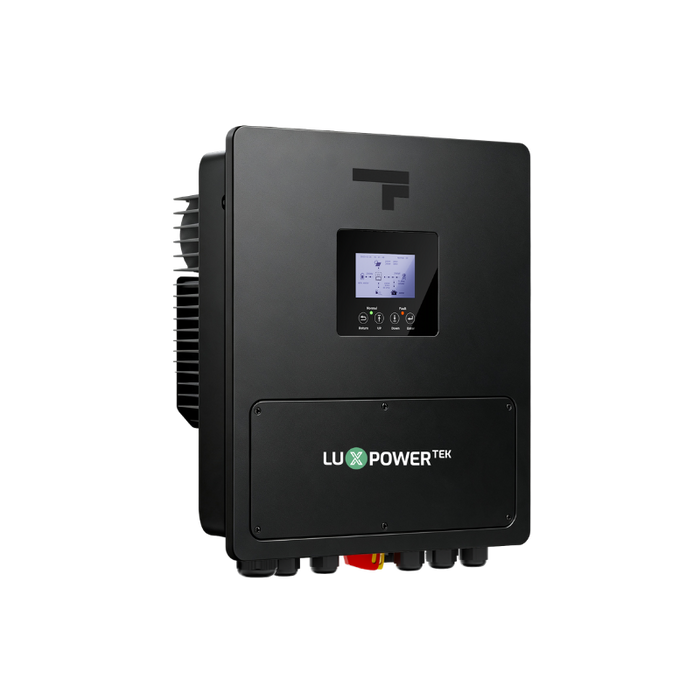

The Fogstar SNA PRO-EU 6.5K is a single-phase (230V) off-grid inverter built on proven LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Delivering 6.5kW of continuous output, it provides dependable performance for off-grid homes, high-demand installations and backup power systems.
With dual MPPTs, up to 12kW of PV input, generator support and parallel operation for up to 16 units, the SNA PRO-EU provides a powerful and flexible foundation for off-grid energy systems.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Best overall: Fogstar Energy 48V 10kWh Battery
Highest-performance option: Fogstar Energy 48V 16.1kWh Battery or 16.1kWh ECO
Modular option: Fogstar Energy 5.12kWh Rack Batteries
Battery capacity and discharge capability should always be matched to the expected system demand.
Key Features
• 6.5kW single-phase (230V) output
• Two independent MPPT inputs
• Up to 12kW maximum PV input
• Supports PV arrays up to 15kW
• Up to 135A charging and 140A discharging
• Dedicated generator or smart-load connection
• Seamless grid-to-off-grid switching
• Parallel capability for up to 16 units
• IP66-rated enclosure
• Five-year warranty
Performance & Reliability
• 6.5kW continuous output power
• 13kW surge power for five seconds
• Up to 96.9% maximum efficiency
• Battery force wake-up from PV, grid and generator
• 60A continuous AC passthrough
• <40dB noise emission
• IP66-rated enclosure for indoor and outdoor installations
Monitoring & Installation
• Remote configuration and performance-monitoring support
• LCD and LED display
• RS485, Wi-Fi and CAN communication
• Smart cooling system
• Installer-friendly wall-mounted design
Dimensions: 384 × 434 × 187mm
Weight: 16.95kg
Ideal For
• Off-grid residential energy systems
• Rural, commercial and agricultural sites
• High-demand off-grid installations
• Backup and resilience applications
• Systems requiring future expansion
The SNA PRO-EU is an off-grid inverter and is not designed for grid export.
