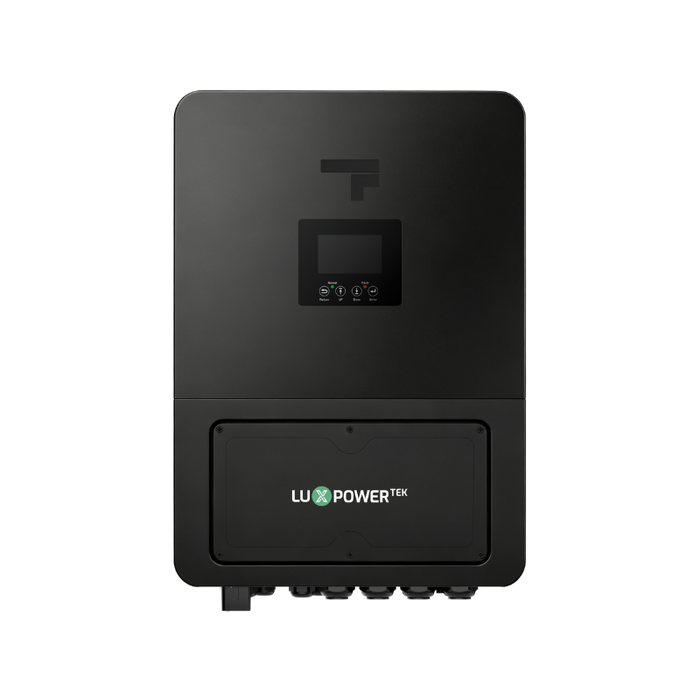

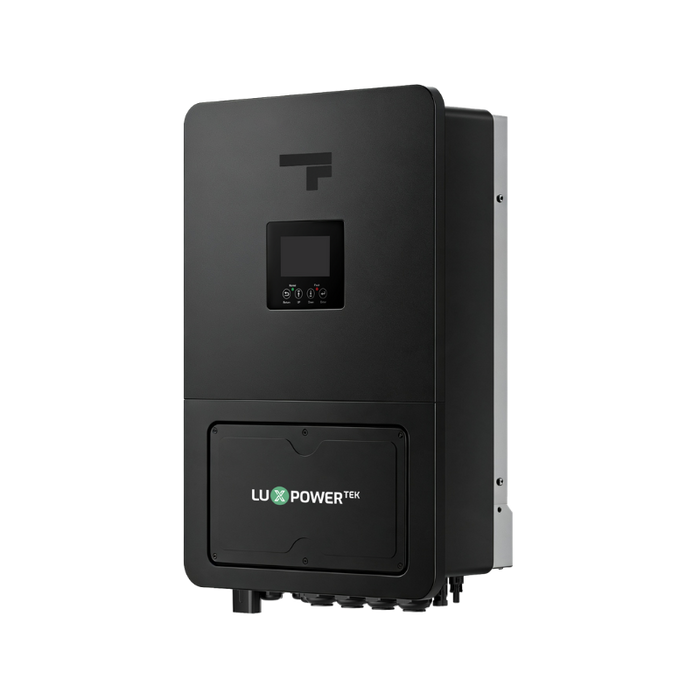

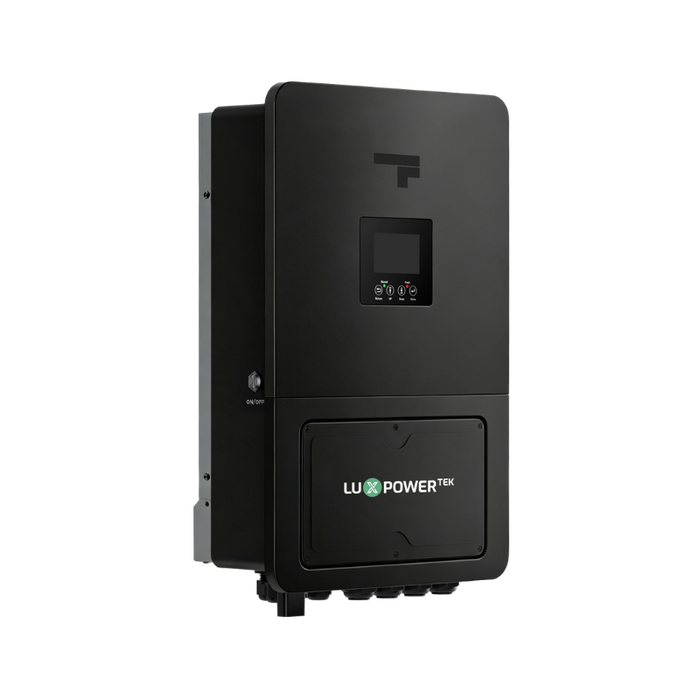

The Fogstar GEN PRO-LB-EU is a single-phase (230V) hybrid inverter range built on next-generation LuxpowerTek technology and configured for seamless integration with Fogstar 48V (51.2V) battery systems.
Available in 8kW, 10kW and 12kW output options, the range is designed for high-demand residential and light commercial energy systems.
With three independent MPPTs, up to 21kW of PV input, generator support and parallel operation for up to 16 units, it provides a powerful and flexible solution for on-grid, off-grid and backup installations.
Built for Fogstar Battery Integration
• Stable BMS communication
• Accurate state-of-charge reporting
• Efficient charge and discharge control
Designed to work reliably with Fogstar Energy 48V (51.2V) battery systems.
Battery Pairings
Minimum setup: Fogstar Energy 48V 10kWh Battery – suitable for the 8kW model
Recommended: Fogstar Energy 48V 16.1kWh Battery
Full headroom: Fogstar Energy 48V 32kWh Battery
Battery capacity and discharge capability should always be matched to the selected inverter output and expected system demand.
Key Features
• 8kW, 10kW and 12kW single-phase output options
• Three independent MPPT inputs
• Up to 21kW maximum PV input
• Up to 270A battery charge and discharge current
• Generator input support
• Seamless 7ms switching
• Parallel capability for up to 16 units
• Built-in Type II AC/DC surge protection
• On-grid and off-grid capability
• Up to 10-year warranty
Performance & Reliability
• Up to 12kW continuous output power
• Double-rated surge power for one second
• Up to 97.3% maximum efficiency
• Battery force wake-up from PV, grid and generator
• 100A continuous AC passthrough
• IP66-rated enclosure for indoor and outdoor installations
Monitoring & Installation
• Remote monitoring support
• LCD display
• RS485, Wi-Fi and CAN communication
• Smart cooling system
• Installer-friendly wall-mounted design
Dimensions: 420 × 634 × 229.5mm
Weight: 27.2–30.2kg, depending on model
Ideal For
• Larger residential solar and battery systems
• Homes with high energy demands
• Backup and resilience systems
• On-grid and off-grid installations
• Light commercial energy storage applications
• Systems requiring future expansion
