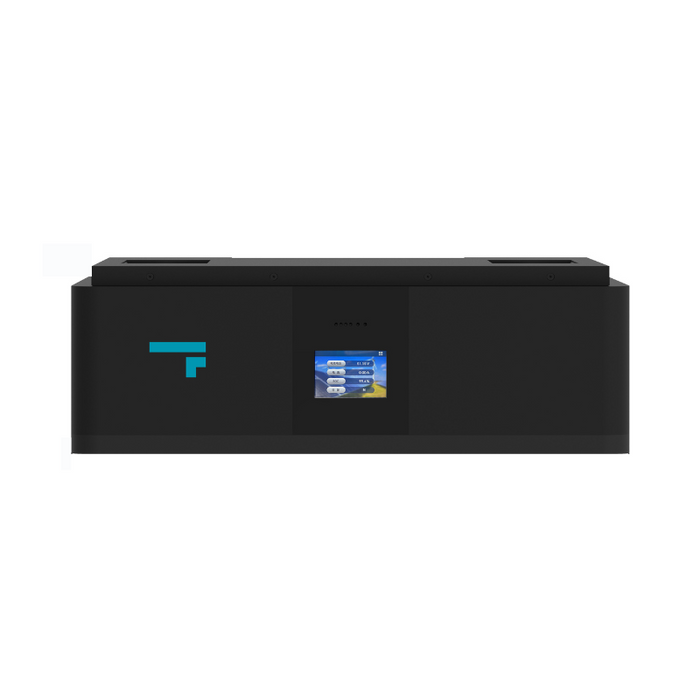

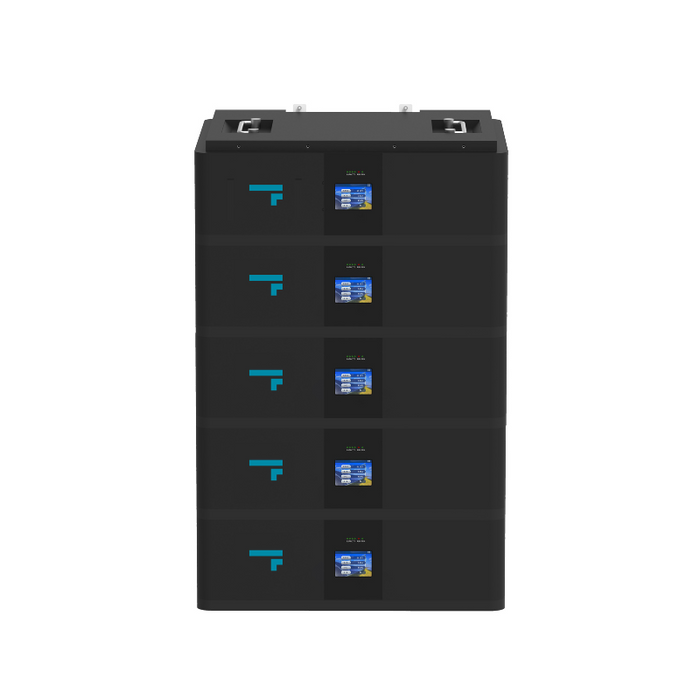

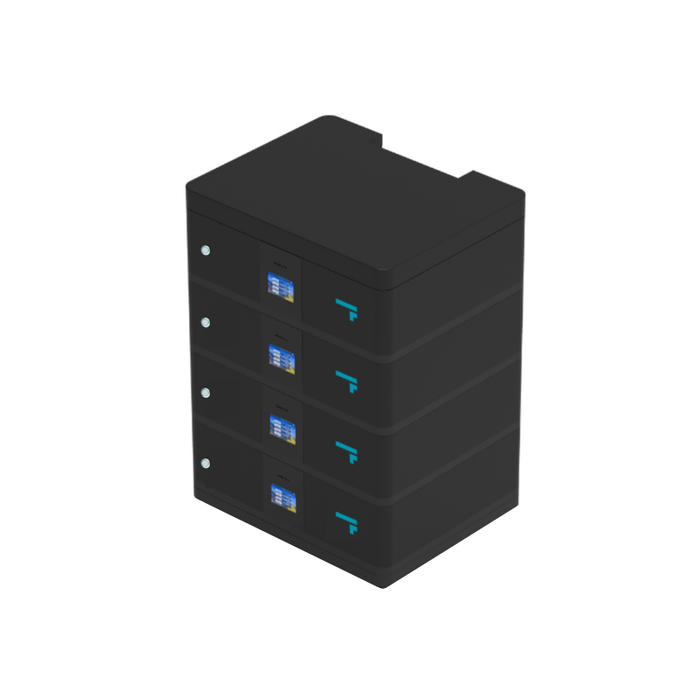

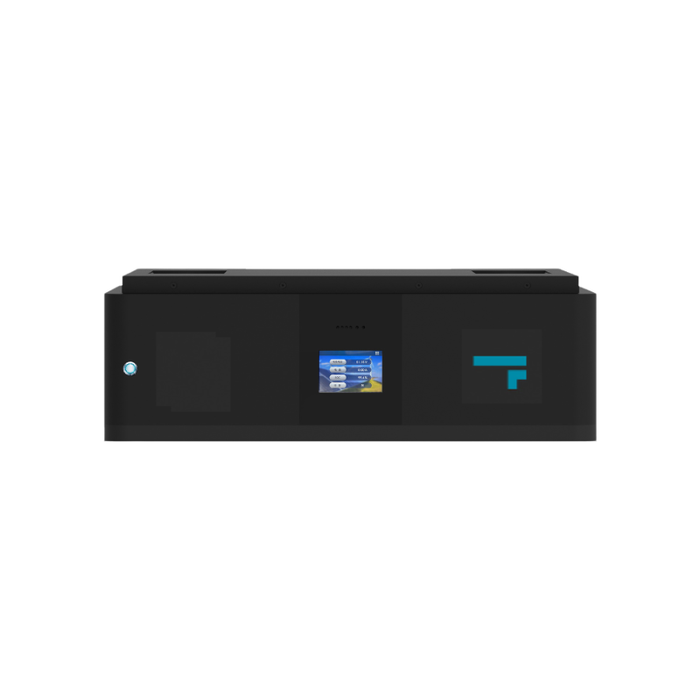

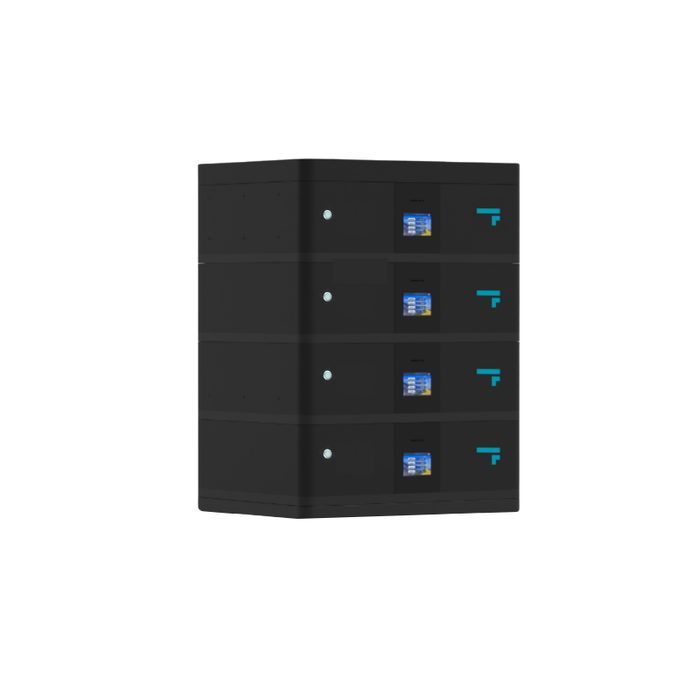

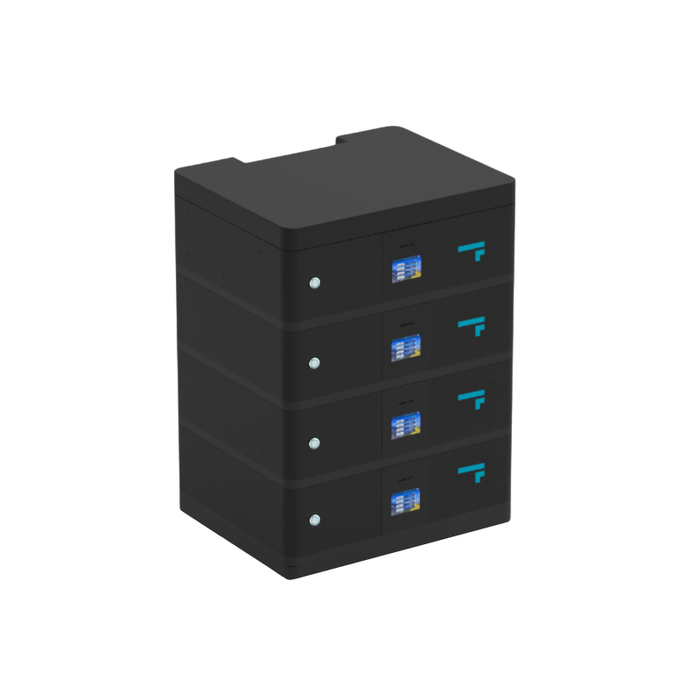

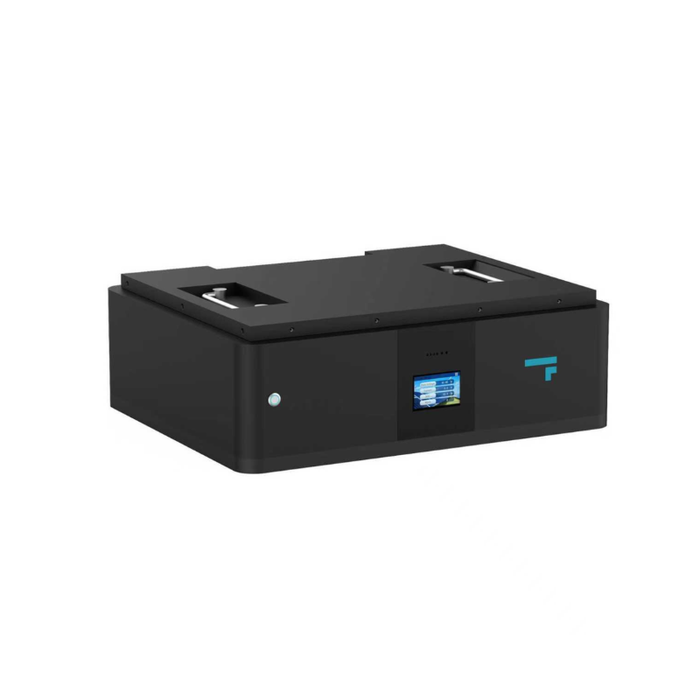

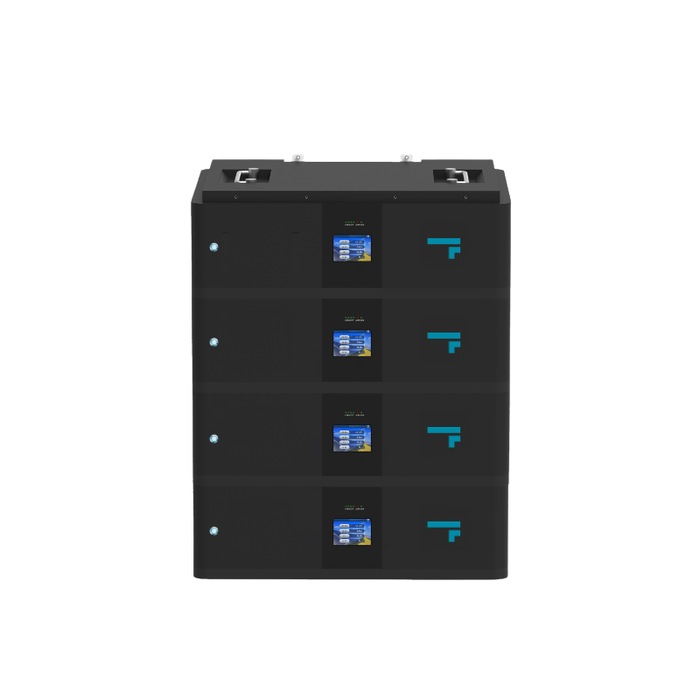

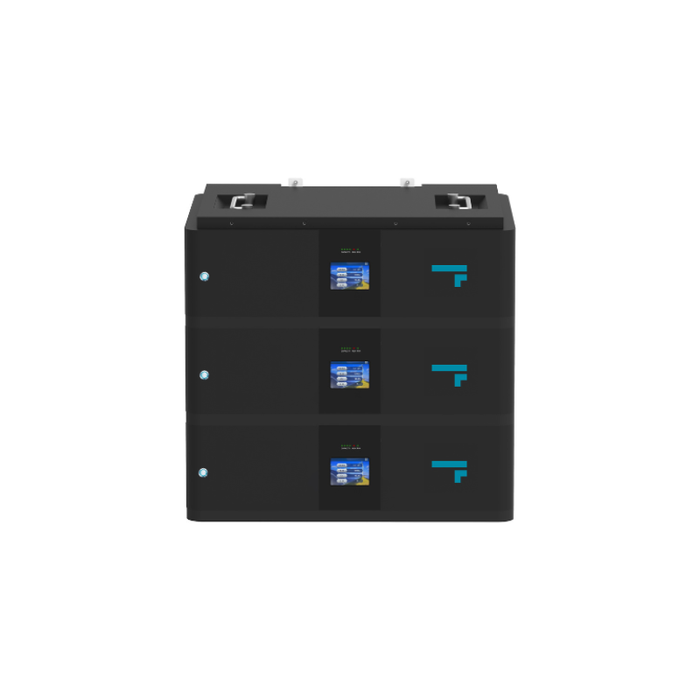

Stackable home battery storage without the premium price tag.

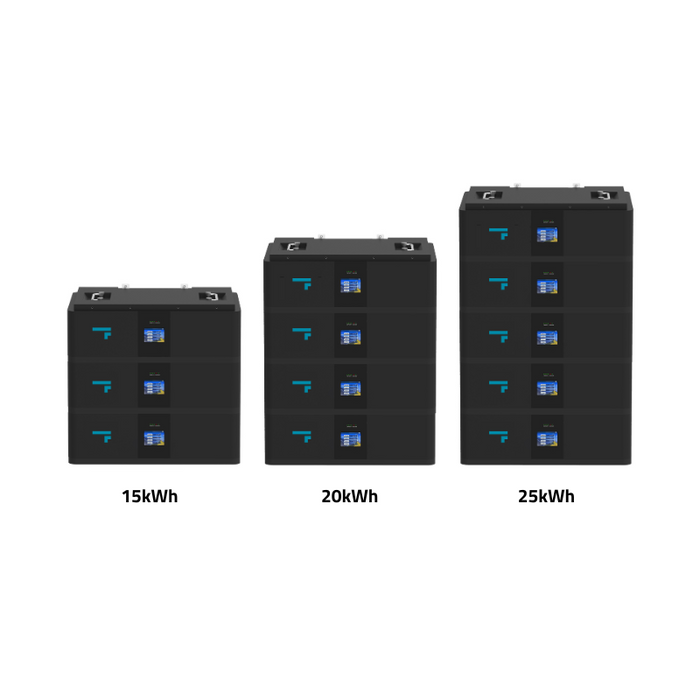

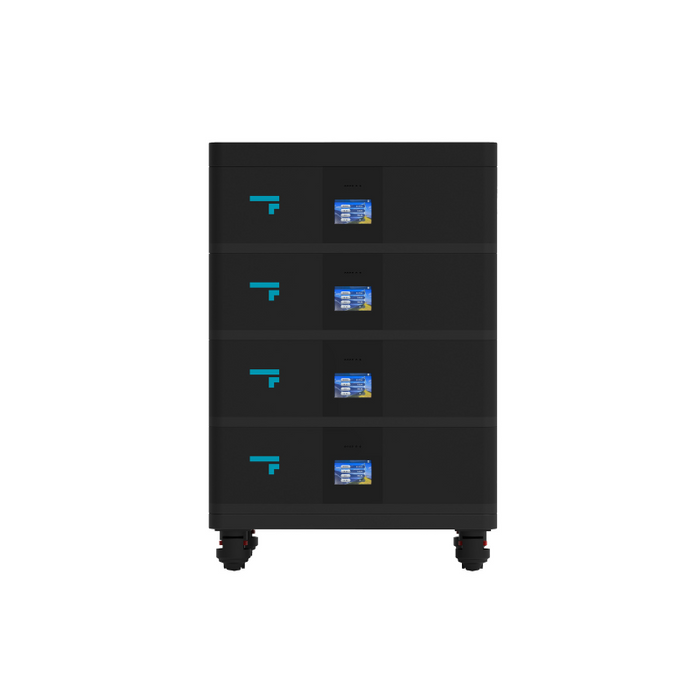

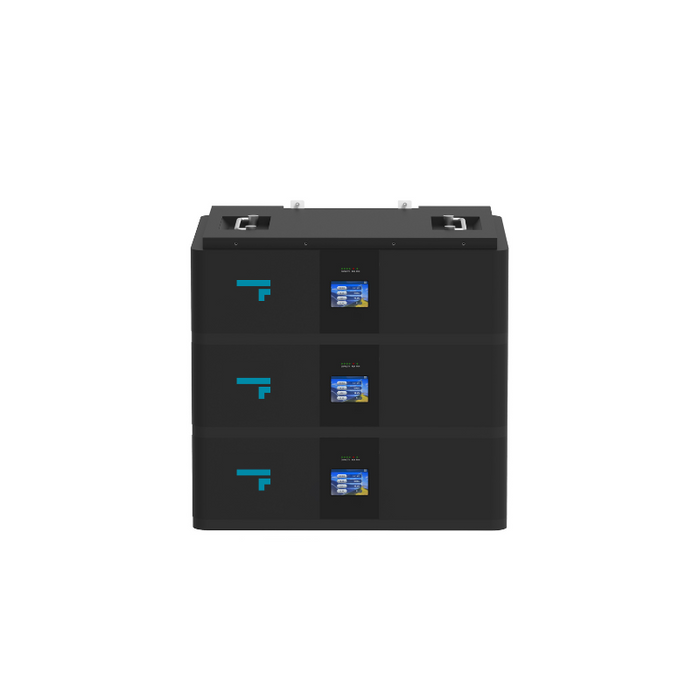

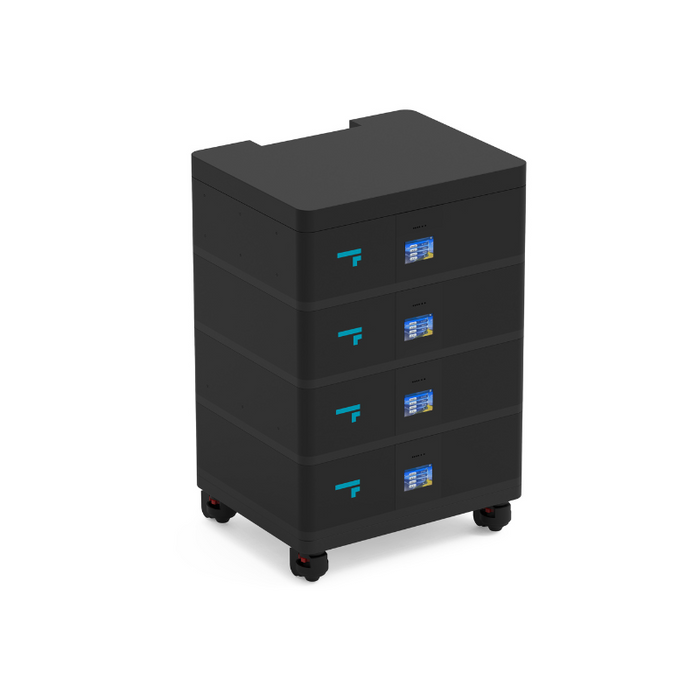

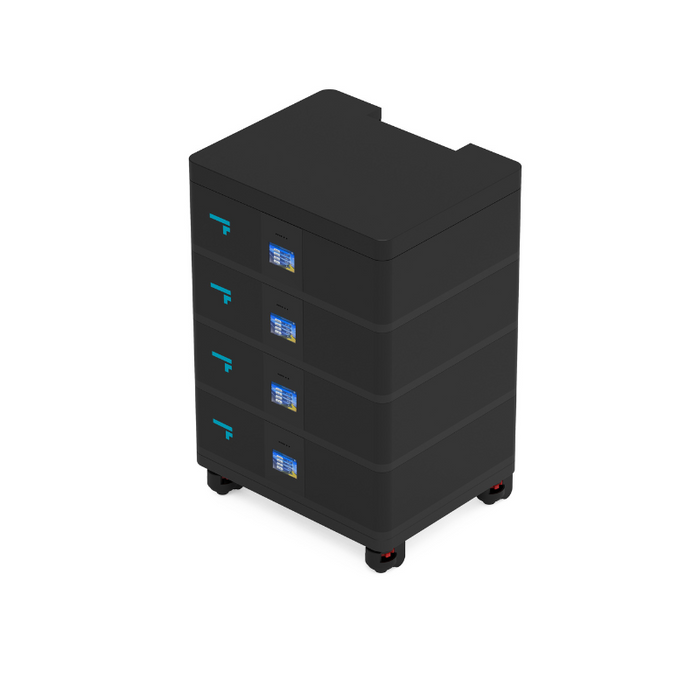

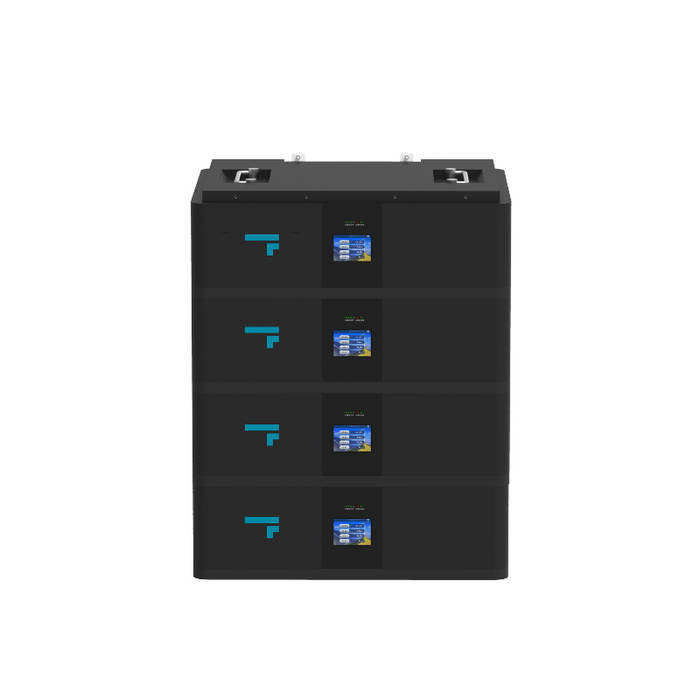

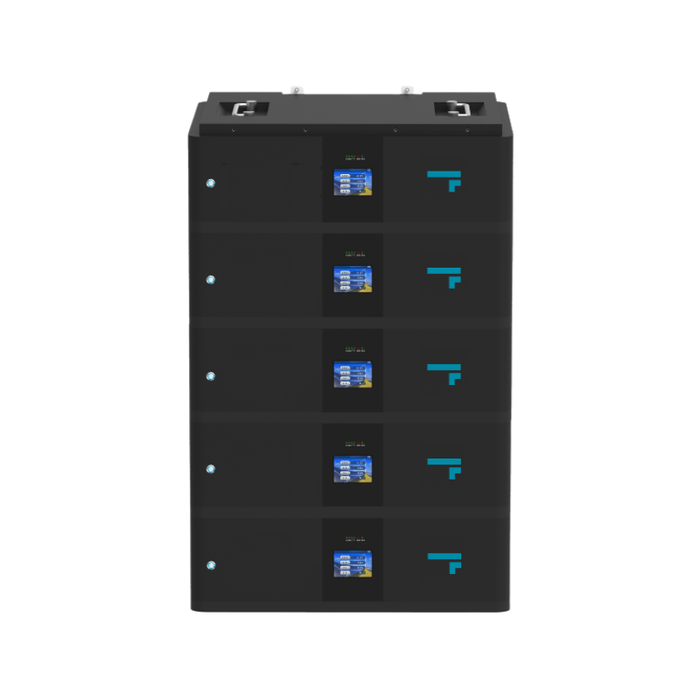

Designed for flexibility, these batteries can be stacked together, starting from 5.12kWh and scaled to unlimited capacity, making them ideal for both residential and commercial energy needs.
This system utilises matched and balanced LiFePO4 cells for superior efficiency and longevity. Equipped with Grade A LiFePO4 cells, 100A BMS and inbuilt 2A JK Active Balancer and touchscreen, the Fogstar Energy Stackable Battery ensures optimised cell balancing, enhanced safety, and extended battery life.
Key Features:
Scalable & Flexible
Start with 5.12kWh and expand to meet your energy demands
Reliable Performance
6 Year warranty + 10 years of customer support
Long Lifespan
6000 cycles at 80% Depth of Discharge (DOD)
Seamless Integration
Compatible with popular inverters such as Luxpower, Victron, Sunsynk, Solis and many more.
Smart Connectivity
CAN & RS485 communication for smooth system integration
User-Friendly Interface
Intuitive LCD touchscreen for real-time monitoring
Expert Cell Management
100A Seplos BMS and 2A JK Active Balancer
Product Specifications:
Rated Energy: 5.12kWh
Cell Assembly: 2P16S
Nominal Voltage (V): 51.2V
Operating Voltage (V): 42V - 58.2V
Cycle Life: 6000 Cycles (at 25°C 50A charge and discharge current) at 80% DOD. 5.12Kwh is fully useable.
Working Temperature: 0 - 40°C Charge. -20°C - 40°C Discharge.
Rated Charge/Discharge Current (A): 50A / 100A @25°C
Maximum Discharge Current: 100A
Capacity: 100Ah
Active Balancer: JK 2A
Weight: 48kg
Nominal Voltage: 51.2V

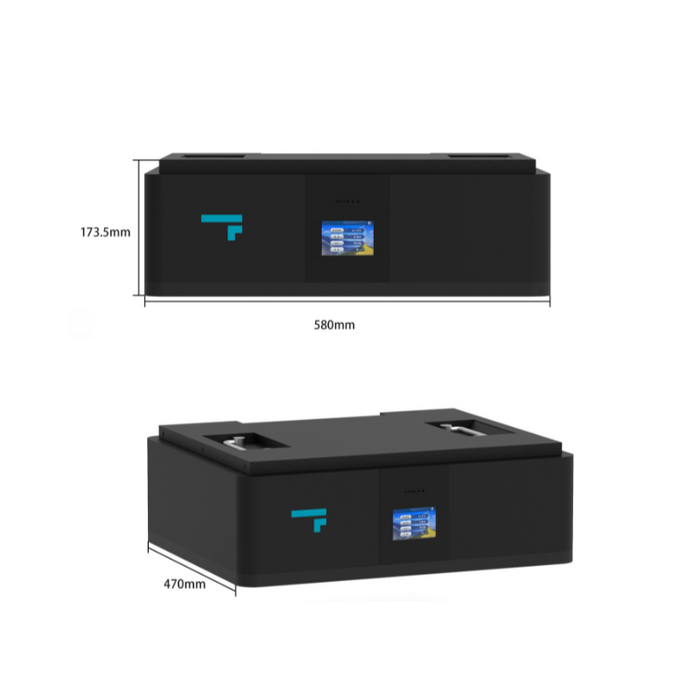

Size: 580 x 470 x 200 mm (without accessories)
Pre-loaded Inverter Protocols: Luxpower, Victron, Sunsynk, Solis and many more.
What's Included?

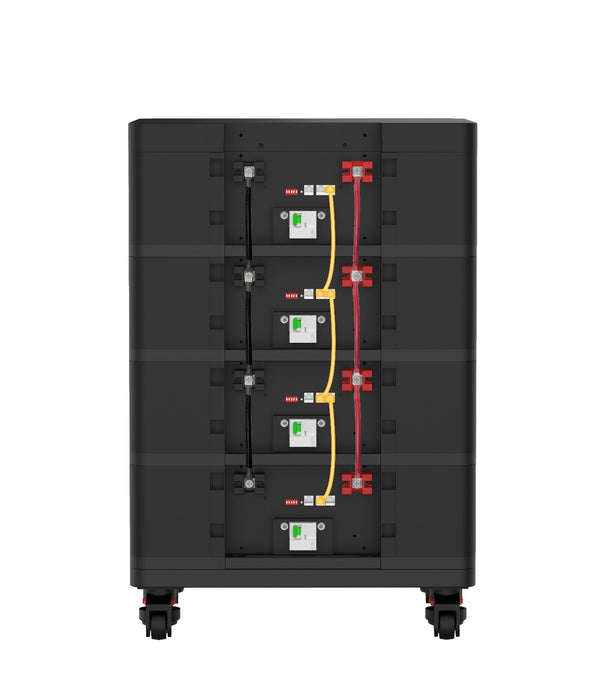

1.5m Communication Cable
Positive and Negative Cables
