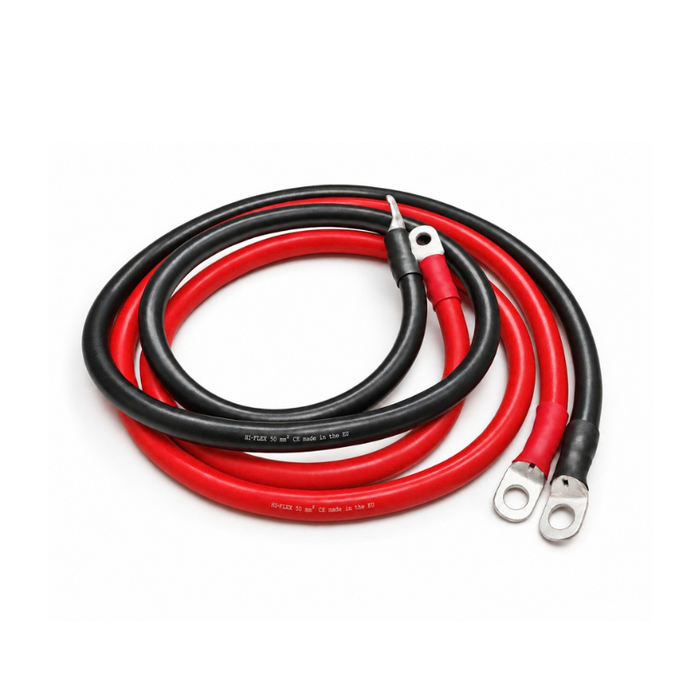

The Fogstar Energy 50mm² Battery to Inverter Cable Pair (M8 to M10) is designed for connecting compatible batteries and busbars with M8 connections to inverters with M10 battery terminals.
Each cable measures 1.5m in length, is fitted with an M8 ring terminal at the battery end and an M10 ring terminal at the inverter end, and is supplied as a positive and negative pair.
The cable pair can be used as a direct battery-to-inverter connection, as an additional or replacement cable pair, or as the inverter lead from an M8 busbar.
⚠️ Please check before ordering
This cable pair is intended for inverters with M10 battery terminals. The current Fogstar x LuxPowerTek inverter range uses M8 battery terminals, so for these models please select the M8 to M8 cable pair.
Some Fogstar Energy batteries use Amphenol-style battery connections rather than ring terminals, so please check the terminal connections on both your battery and inverter before ordering.
Compatible Inverters
• LuxPowerTek GEN-LB-EU 8K Single-Phase Hybrid Inverter
• LuxPowerTek GEN-LB-EU 10K Single-Phase Hybrid Inverter
• Other inverter systems with M10 battery terminals
Not Suitable For
• The current Fogstar x LuxPowerTek GEN3, GEN PRO, GEN2 14K, SNA 14K and TriP2 inverters, which use M8 battery terminals (see the M8 to M8 cable pair)
• Fogstar SNA PRO 6.5K Off-Grid Inverter (M6 battery terminals)
• Direct connection to the Fogstar Energy 10kWh, 16.1kWh IP65 or Modular Battery Stack terminals, which use Amphenol connections
• Direct connection to the Fogstar Energy 5.12kWh Rack Battery terminals, which use M6 connections
Specifications
Cable Size: 50mm²
Length: 1.5m
Terminals: M8 (battery end) to M10 (inverter end) ring terminals
Quantity: 2 cables
Configuration: Positive and negative pair
