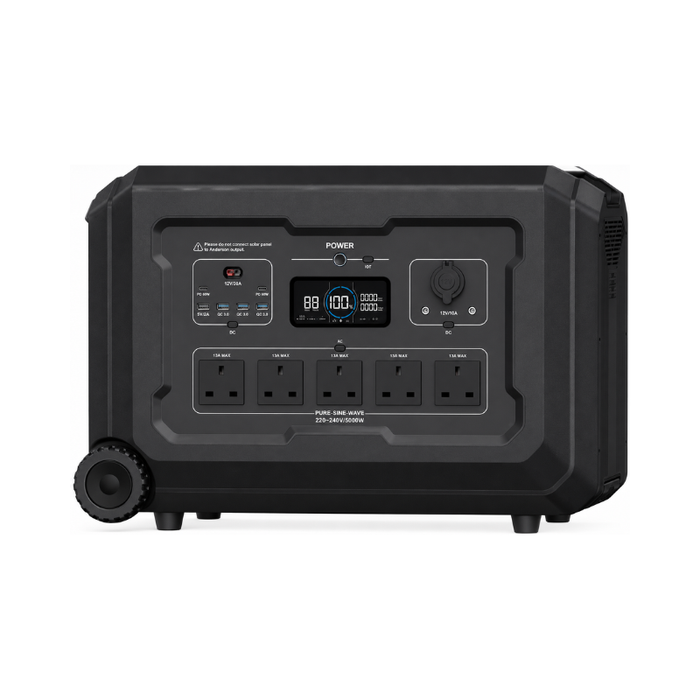

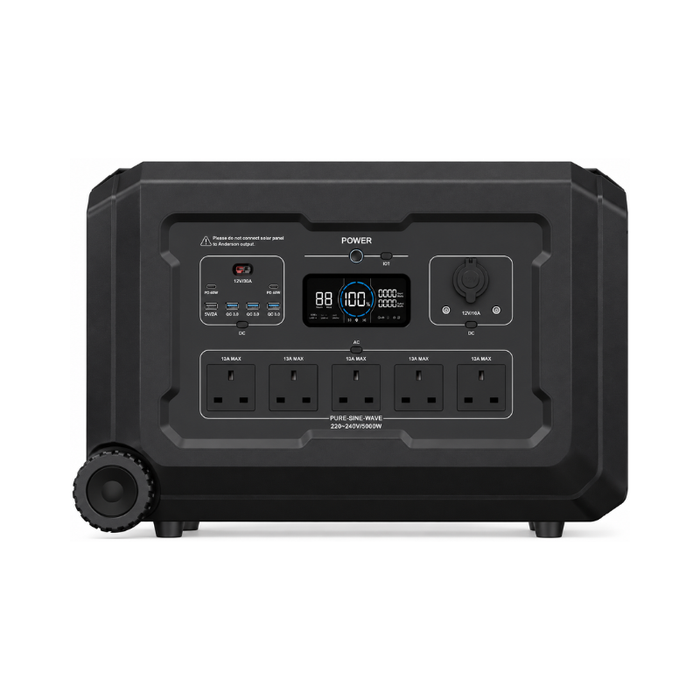

The Fogstar 5kWh Power Station delivers high-capacity LiFePO4 backup power for homes, workshops, off-grid systems, campervans and mobile energy applications.
Built around a high-capacity 48V LiFePO4 battery platform, the Fogstar 5kWh Power Station combines a powerful 5000W pure sine wave inverter, rapid charging capability and high solar input support in a rugged mobile design.
With 5040Wh of energy storage and 7000W peak surge capability, the system is suitable for powering appliances, tools, chargers and high-demand electrical equipment during everyday use or power interruptions.
The integrated MPPT solar controller supports up to 2100W solar input for efficient off-grid charging performance, while high-speed AC charging enables rapid system recharge when required.
EXPANDABLE ENERGY STORAGE
The Fogstar 5kWh Power Station is compatible with optional Fogstar Expansion Battery Packs, allowing additional energy storage capacity for extended runtime applications.
Compatible expansion batteries provide a modular energy storage solution for users requiring increased backup duration, longer off-grid operation or additional portable power capacity.
- 5040Wh LiFePO4 Capacity: High-capacity lithium iron phosphate energy storage for backup and off-grid power applications.
- 5000W Pure Sine Wave Output: Stable AC output suitable for appliances, tools, chargers and sensitive electronics.
- 7000W Peak Surge Capability: Supports high-startup loads for compatible appliances and equipment.
- Expandable Battery System: Compatible with Fogstar Expansion Battery Packs for additional energy storage capacity.
- Five AC Output Sockets: Multiple AC outputs for powering several compatible devices simultaneously.
- 2100W MPPT Solar Input: Integrated MPPT solar charging with high-voltage PV support for efficient off-grid charging.
- Fast AC Charging: High-speed AC charging support for reduced downtime and rapid recharge performance.
- UPS/EPS Backup Functionality: Supports backup power operation for compatible devices during power interruptions.
- ≤20ms UPS Switching: Fast switching time for backup power applications and sensitive electronics.
- Bluetooth & WiFi Connectivity: Supports smart monitoring and remote management functionality.
- Integrated Wheels & Handle: Built-in transport wheels and pull handle for easier movement and positioning.
- Smart LCD Display: Monitor battery level, charging status and power usage directly from the integrated display.
- 3 Year Warranty: Covered by a 3-year Fogstar warranty.
QUICK SPECS
- Energy 5040Wh
- Battery Voltage 48V
- Battery Chemistry LiFePO4
- AC Output 5000W Pure Sine Wave
- Peak Output 7000W
- AC Outputs 5
- Solar Input 2100W MPPT
- UPS Switching Time ≤20ms
- Expandable Yes
- Weight 51Kg
- Warranty 3 Years
