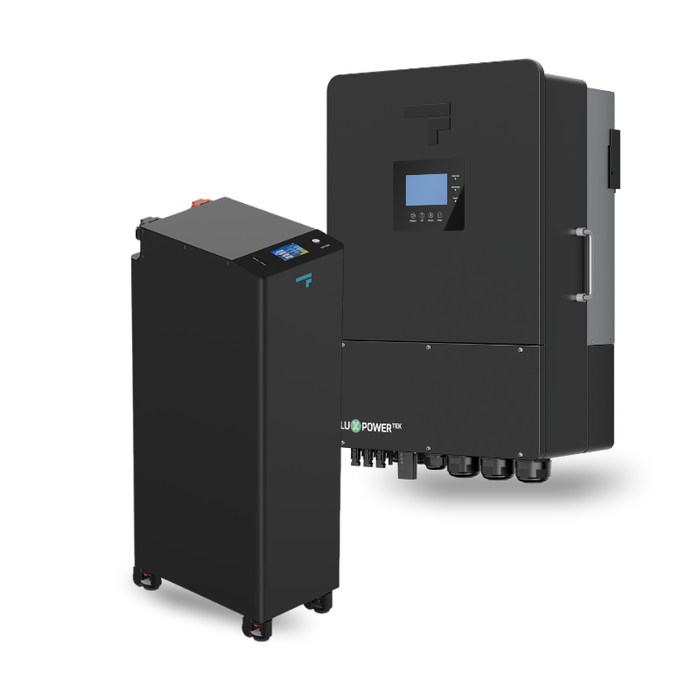

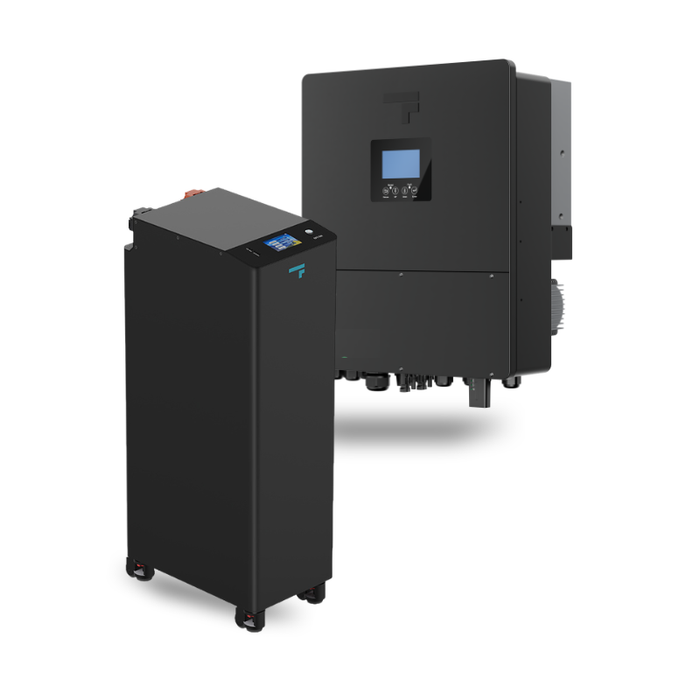

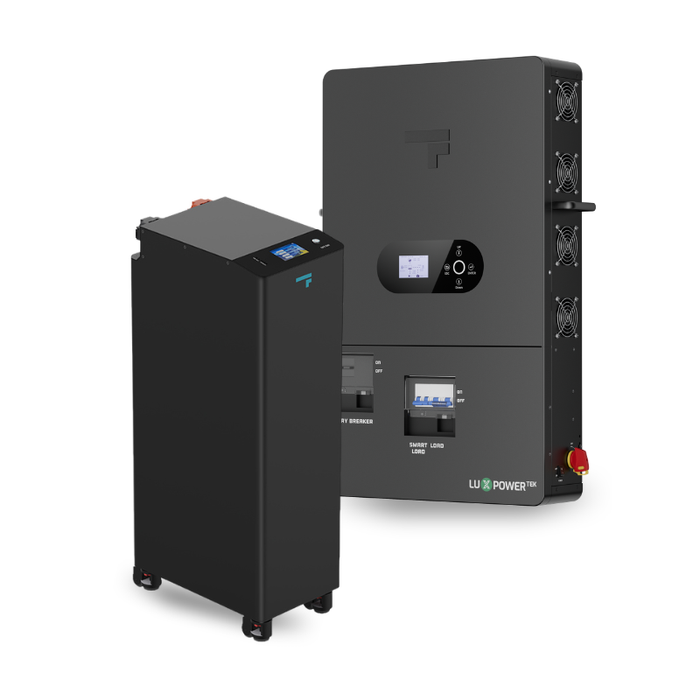

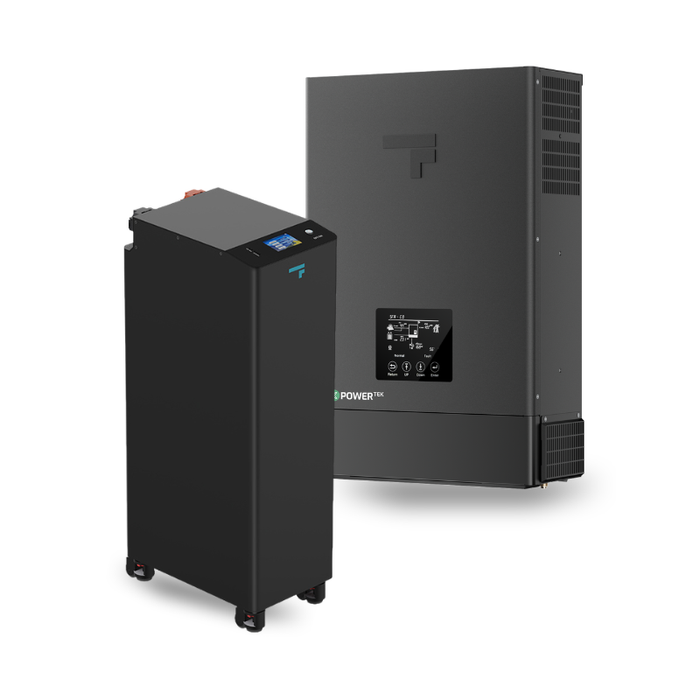

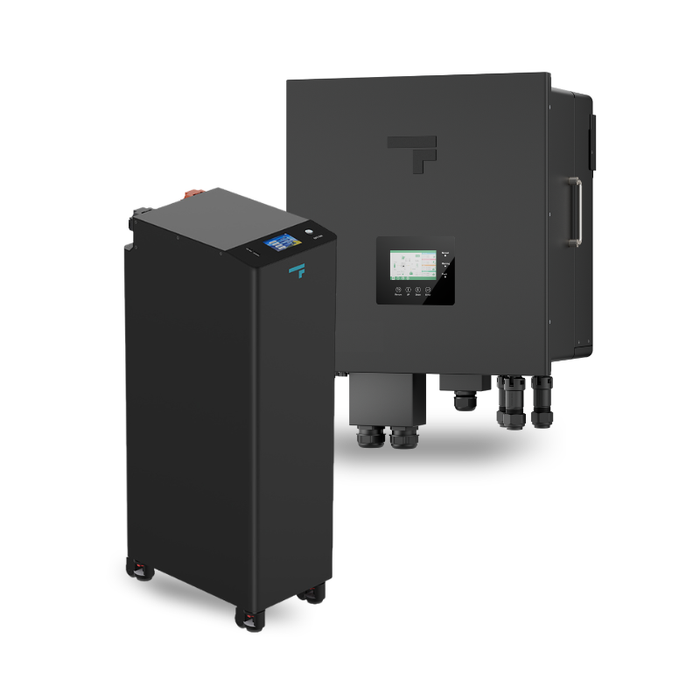

Fogstar Energy 16.1kWh ECO 48V Battery + Inverter Bundle
The Fogstar Energy 16.1kWh ECO Battery is a fully assembled, high-capacity lithium energy storage solution designed for residential, commercial and off-grid applications.
Built around a powerful 200A Battery Management System, integrated battery heating and automatic fire suppression, it delivers dependable performance, enhanced safety and long-term reliability in demanding environments. Designed for seamless integration with leading inverter brands and scalable energy storage systems, the Fogstar Energy 16.1kWh ECO Battery provides a cost-effective foundation for solar energy storage, backup power and off-grid installations.
Key Features
• 16.1kWh usable lithium battery storage
• Advanced 200A Battery Management System (BMS)
• Integrated automatic fire suppression system
• Built-in heating for charging in temperatures down to -10°C
• JK 2A Active Balancer for enhanced cell management
• Up to 200A discharge current for high-demand applications
• LCD touchscreen display for monitoring and system management
• Compatible with Victron, Sunsynk, Solis, Luxpower, Voltacon and many other leading inverter brands
• CAN and RS485 communication for seamless inverter integration
• Up to 16 batteries connected in parallel for expanded energy storage
• Up to 8,000 cycle life at 91% depth of discharge
• Fully assembled and ready for installation
• 6-year warranty with 10 years of customer support
Ideal for solar energy storage, whole-home backup power, off-grid systems and commercial energy storage applications.
Weight: 122.5kg
Dimensions: 415 × 260 × 898.5mm
➡️ View Full Battery Specifications
Fogstar GEN3 3.6-6K Single-Phase Hybrid Inverter
A compact single-phase hybrid inverter designed for residential solar and battery storage systems. Supplied as a 6kW unit with 3.6kW, 5kW and 6kW rating labels, it suits installations of different sizes, combining solar generation, battery storage and backup power functionality in a single unit to help maximise self-consumption while providing reliable power during grid outages.
Weight: 22.5kg
Dimensions: 416 × 229.5 × 538.5mm
Fogstar GEN PRO 8-12K Single-Phase Hybrid Inverter
A high-performance single-phase hybrid inverter designed for larger homes and light commercial applications. Supporting solar generation, battery storage, backup power and generator integration, it provides a flexible energy solution for users looking to maximise energy independence and reduce reliance on the grid.
Weight: 30.2kg
Dimensions: 420 × 229.5 × 634mm
Fogstar GEN2 14K Single-Phase Hybrid Inverter
A high-performance single-phase hybrid inverter designed for larger homes and light commercial applications. Supporting solar generation, battery storage, backup power and generator integration, it provides a flexible energy solution for users looking to maximise energy independence and reduce reliance on the grid.
Weight: 48kg
Dimensions: 566mm × 275mm × 653mm
Fogstar SNA PRO 6.5K Off-Grid Inverter
A powerful off-grid inverter designed for cabins, workshops, remote properties and off-grid homes. Combining solar charging, battery storage and generator support, it delivers dependable power where grid access is unavailable, making it ideal for self-sufficient energy systems.
Weight: 16.95kg
Dimensions: 384 × 187 × 434mm
➡️ View SNA PRO 6.5K Off-Grid Inverter
Fogstar SNA 14K Off-Grid Inverter
A high-capacity off-grid inverter built for larger residential, agricultural and commercial energy systems. Designed to support substantial power demands, it integrates seamlessly with solar panels, battery storage and generators to provide reliable, scalable power completely independent of the grid.
Weight: 43.5kg
Dimensions: 530 × 150 × 830mm
➡️ View SNA 14K Off-Grid Inverter
Fogstar TriP2-LB-3P 20K Three-Phase Hybrid Inverter
A powerful three-phase hybrid inverter designed for larger residential, commercial and light industrial energy systems. Featuring three MPPTs, unbalanced load support, generator integration and advanced battery management, it provides exceptional flexibility for high-capacity solar and energy storage installations.
Weight: 53kg
Dimensions: 480 × 258 × 703mm
*All inverter options include a Wi-Fi dongle as standard, enabling remote monitoring and system management
Setting the Power Rating
The power rating is set remotely through the LuxPower Monitor Centre using your installer account. Once it’s set, swap the inverter’s rating label for the matching one supplied with the inverter. Our step-by-step guide walks you through the process.
➡️ Download the Power Rating Guide
Grid Compliance Documents
Your installer uses these documents when applying to your Distribution Network Operator (DNO) to connect your system to the grid. G99 reports confirm the inverter meets the UK requirements for connecting to the distribution network. G100 documents cover export limitation, where the inverter controls how much power is exported to the grid.
GEN3 3.6–6K Inverter
G99 Reports – choose the report that matches the output rating your inverter is set to:
➡️ Download the G99 Report (3.6kW)
➡️ Download the G99 Report (5kW)
➡️ Download the G99 Report (6kW)
G100 Document – covers all GEN3 models:
➡️ Download the G100 Document
GEN PRO 8–12K Inverter
G99 Reports – choose the report that matches your inverter’s output:
➡️ Download the G99 Report (8kW)
➡️ Download the G99 Report (10kW)
➡️ Download the G99 Report (12kW)
G100 Document – covers all GEN PRO models:
➡️ Download the G100 Document
GEN2 14K Inverter
G99 Report:
➡️ Download the G99 Report (14kW)
G100 Document:
➡️ Download the G100 Document
TriP2 20K Inverter
G99 Report:
➡️ Download the G99 Report (20kW)
G100 Document:
➡️ Download the G100 Document
Need a document that isn’t listed here? Just email us at customerservice@fogstar.co.uk and we’ll be happy to help.
