⚡To be used with Fogstar products only⚡

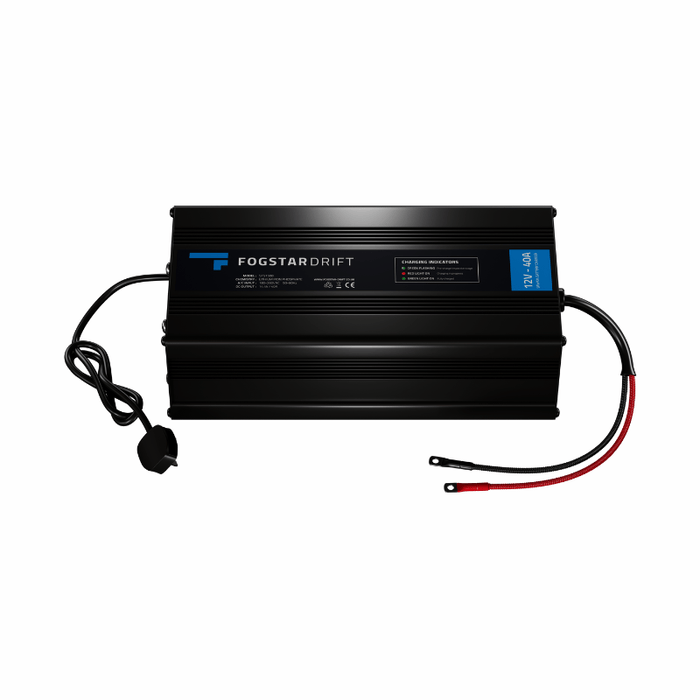

These chargers have been designed by Fogstar specifically to work with our Fogstar Drift LiFePO4 batteries, in particular our 230Ah, 280Ah, 300Ah and 460Ah 12V Leisure Batteries.
2-Year Warranty: Backed by a comprehensive 2-Year Manufacturers Warranty
These V3.0 Chargers now include a temperature-controlled fan that intelligently activates and deactivates when required, ensuring optimal conditions and significantly quieter performance.
Our user-friendly 12V 40A LiFePO4 charger is packed with extensive protective features, and are of a high seismic grade, ideal for use during off-grid adventures.
PRODUCT SPECIFICATIONS
Working Temperature -30°c ~ +40°c
Storage Temperature -40°c ~ +70°c
Relative Humidity 5% ~ 95%
Heat Dissipation Mode Fan Cooling
Input Voltage 180-260 VAC
Input Frequency 50Hz / 60 Hz
Chemistry LiFePO4
DC Output 14.2V / 40A
Ring connector size M10 (will fit M8 using a washer)
HOW TO CONNECT YOUR CHARGER
- Remove your charger from the packaging
- Retain your packaging
- Ensure the charger air vents are not blocked before connecting
- Connect the black (negative -) cable to the black (negative -) terminal on the battery
- Connect the red (positive +) cable to the red (positive +) terminal on the battery
- Ensure terminal rings are tightened
- Plug your battery charger into the mains and switch ON
- Your battery indicator light should be flashing green (pre-charge inspection stage).
HEALTH AND SAFETY
- Do not disassemble the charger
- Do not leave charger on unattended
- Do not remove the charger cover
- Do not block the charger air vent
- Keep away from heat source
- Keep away from water
- Do not crush, incinerate or modify
- Only use within manufacturers specifications.
