Fogstar Energy 12V DIY Kit (Envision Grade B 315Ah)

Save 37%
Original price £709.95
Current price £449.99

This exciting new Fogstar product is coming soon!

Pre-order the Fogstar Energy 12V DIY Kit now with just a 10% deposit. Shipping is expected to start on 16th December.

Build your own powerful and reliable energy storage solution with our complete 12V DIY kit. Ideal for campervans, caravans, boats, off-grid, and back-up power scenarios.

Key Features:

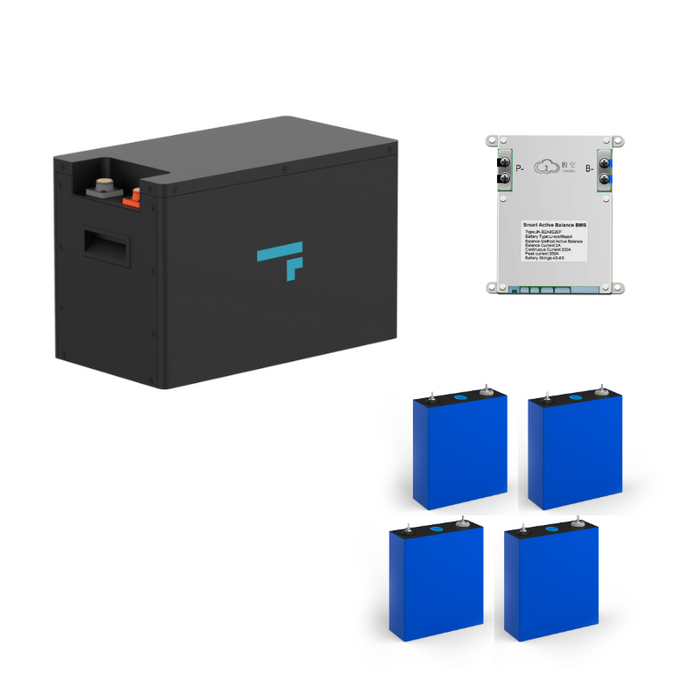

  • Comprehensive Kit: Includes everything needed to assemble a 12V Fogstar battery, including the case, LiFePO4 cells, accessories, and BMS.
  • Capacity: Grade B Envision 315Ah.

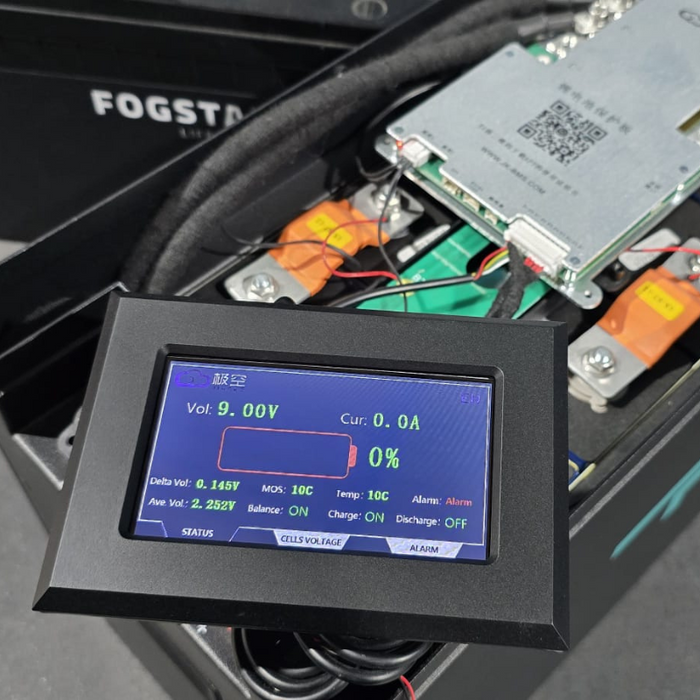

  • Smart BMS: The included JK 200A Smart BMS with 2A Active Balancing and Bluetooth ensures optimal battery performance and safety.
  • Durable Construction: The metal case with recessed terminals and ON/OFF switch provides a rugged and reliable housing for your battery.
  • Warranty: Backed by a one-year warranty on all components, including cells, BMS, and case.

Kit Specifications:

  • Voltage: 12V
  • Capacity: Envision Grade B 315Ah
  • BMS: JK 200A Smart BMS with 2A Active Balancing and Bluetooth
  • Case Material: Metal
  • Case Dimensions: L 400 x W 220 x H 265 mm
  • kWh: 4032kWh

Cell Specifications:

  • Manufacturer: Envision
  • Model: HC-L315A 3.2V 315Ah
  • Size: 71mm x 207mm x 174mm
  • Capacity: 315Ah
  • Weight: 5.6KG
  • Standard Charge Voltage: 3.65V
  • Maximum Discharge Power: 1P
  • Nominal Voltage: 3.2V
  • Cycle Life : 8000 cycles @ 0.5C

BMS Specifications:

  • Model: 200A
  • Balance Current: 2A
  • Pack Structure: 4S-8S
  • Nominal Voltage Per Cell: 3.2v
  • Operating Temperature: -30°C~75°C
  • P- / C-Connection Type: M6 Threaded Terminal - 2 each (4 total).

We recommend that users have a solid understanding of electrical systems and components before attempting to build their own battery.

Supporting documents are available upon request (UN38.3, Specification Reports & MSDS) - contact our Customer Service team for more information.

  • 1 year warranty on all 12V DIY Kits. Fogstar will verify your purchase prior to processing any warranty claims or returns.
  • If it is determined that the product is faulty, we will ship a new product to you immediately, you will only be asked to cover the cost of the shipping.
  • Our warranty does not cover items that have been damaged due to gross negligence, normal wear and tear, damage due to accident or collision, abuse or incorrect installation.
  • Keep away from animals and children.
  • The Envision 315Ah Prismatic batteries usually have a cycle life >8000 cycles before noticeable capacity drop off. Batteries should be recycled at this time.
  • Do not crush, incinerate or modify.
  • Only use within manufacturers specification.
